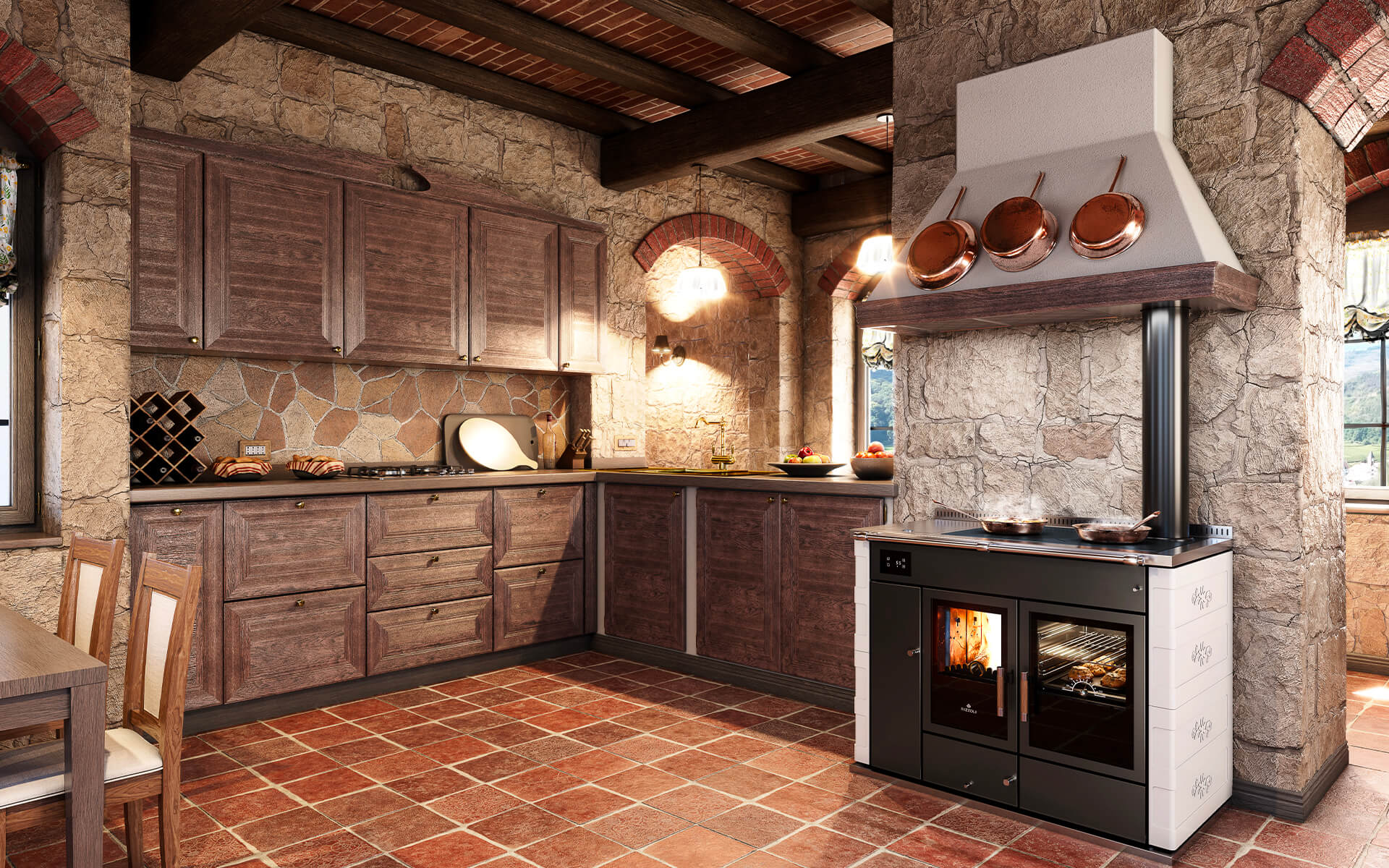

Rizzoli STP 30KW wood cooker

Wood-burning thermo-cookers

STP

Click to Download PDF

The new STP has been completely redesigned, both in terms of technology and design. Inside, the innovative H2O System certified combustion system is always present, guaranteeing even higher performance and certified yields up to 87.9%. This extraordinary achievement has allowed the new STP to fall within the limits set by the environmental certification (D.M. 186/2017) obtaining 4 stars. Also the fumes circuit has been renewed, which is now double and is able to offer uniform oven cooking. Externally we find a completely renewed, more modern and appealing design, which uses new precious finishes in hand-made majolica and serpentine stone; a brand new glass keypad with touch controls; new handles in precious wood and satin steel that give a more refined design; a wood box with a push-pull opening system. Finally many improvements also in the oven, which now has a brand new lighting system, double glazing and a new thermometer. The STP Series is equipped with numerous plant components including: circulation pump, electronic control unit, integrated safety system, level switch, flow switch, double stainless steel coils.

It's all included.

Double stainless steel circuits
Heating circuit pump
Glass touch screen control unit
Integrated safety system with open expansion tank
Flowmeter and level switch

And the advantages are clear.

Instantaneous production of sanitary hot water
30,7 kw power
Extremely easy connection
Savings on installation costs
Ready for installation on a closed vessel system

Technologies

Technical Data

• H2O System certified combustion system

• Height*: 850 mm (excluding upstand 60x15mm - HxD)

• Automatic primary air regulation - Air Control

• Preheated secondary air

• External air intake - External Air

• Fire door with double glass and Shiny Glass system

• Hermetically sealed fire and ash doors

• Variable wood load with grill lift system

• Wood box with push-pull opening

• High performance steel radiant plate

• Ventilated sides with natural thermal convection

• Front handrail

• Oven door with double glass

• Stainless steel oven

• Oven with grill and excess steam valve

• Oven with electric lighting and thermometer

• Pyrolytic enamel baking pan on telescopic guides

• Glass control unit with touch controls

• Control unit with acoustic signals

• Instant production of domestic hot water

• Integrated open expansion tank safety system

• Double coil heat exchange system

• Pump for the heating circuit

• Prevalence flow switch on DHW circuit

• Level switch for boiler water level control

• Automatic vent valve

• Ready for closed expansion tank installation

Technical Data

• Length:1050 mm
• Height: 850 mm
• Width:600 mm
• Size of the Oven (lxhxw): 300x279x430 mm
• Total Nominal Power:10,5 kW
• Water Nominal Power: 5,8 kW
• Heating Nominal power:4,7 kW
• Nominal Power Performance:80,3 %
• Weight:335 Kg
